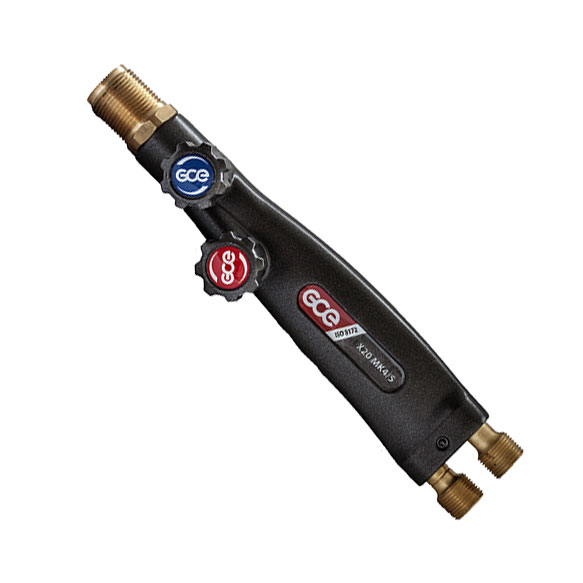

GCE X20 MK4/5 ORIGINAL SHANK

COMBINED WELDING & CUTTING TORCH FOR MEDIUM-DUTY APPLICATIONS

GCE continues introducing the new torch design across the extensive Cutting & Welding product range. Now it´s time to present the GCE X20™ MK 4/5 ORIGINAL torch program.

The GCE X20™ MK 4/5 ORIGINAL is a high-pressure, sturdily constructed, and well-balanced welding and cutting torch replacing the MK 4/5, together with additional improved progressive features. Each component (shank, mixer, cutting attachment) is interchangeable with other leading makes of type 3/4/5 equipment. It has a new design and well-balanced front-mounted colour-coded control valves, employing stainless valve spindles. Providing fine adjustment and leak-free conditions. The shank is common to both welding and cutting attachment the same quick positive positioning and leak-free means of attachment being used for both. The GCE X20™ MK 4/5 ORIGINAL torch system and nozzles conform to the EN ISO 5172.

GCE X20™ MK 4/5 ORIGINAL

FEATURES

WELDING AND HEATING

• Designed for welding work from 1 mm to over 25 mm thickness using type GCE X20™ MK 4/5 ORIGINAL swaged nozzles sizes 1 - 90 ft³/h litres.
• The mixer seats on serrated toothed faces allowing the operator a selection of positive nozzle positioning through 360°.
• Can also be used for heating, with either acetylene or propane heating nozzles, together with a heating neck.

CUTTING

• The cutting head is nozzle mixing, enabling the operator to use either acetylene or propane fuel gases by fitting the appropriate nozzle.
• A range of ANM and PNM nozzles are available for clean efficient cutting of material thickness from sheet metal to 150 mm.
• Its versatility allows gouging, flame cleaning, etc., to be supplied to customer´s requirements.

PROPANE SUPERHEATING

• Using a propane superheating mixer and 10" or 28" stainless steel superheating neck an intense heat output of up to 175 KW/h is obtained.
• Ideal for heating castings and similar large articles.
