HYPERTHERM POWERMAX 65 SYNC PLASMA CUTTER 415V 3PH
Stock Code: 083356

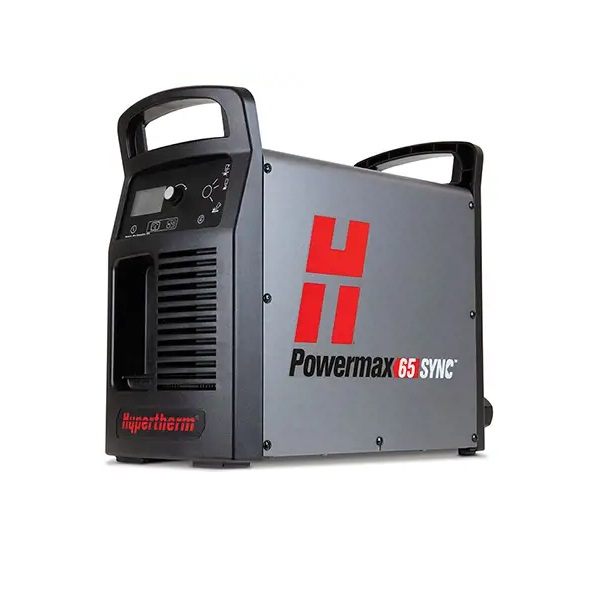

Hypertherm Powermax65 SYNC | 65A Handheld Plasma Cutter
For fabricators cutting brackets, repair patches and plate profiles, the Powermax65 SYNC delivers a recommended 20mm cut at 500mm/min. It also handles weld removal and joint preparation with a gouging cartridge. The 7.6m torch lead gives you room to work around larger assemblies.
Key Features
- 65A output Recommended for cutting 20mm at 500mm/min.
- Automatic setup SmartSYNC reads the cartridge and sets the process and amperage.
- Quick cartridge changes Swap the one-piece cartridge when moving from cutting to gouging.
- 7.6m hand torch Work around large fabrications with the supplied 75° torch.
Torch and Consumables
This handheld package includes a 75° SmartSYNC hand torch with a 7.6m lead. The torch reads the RFID-enabled, one-piece Hypertherm cartridge and sets the process and amperage for the fitted cartridge. The single-piece design simplifies changeovers between cutting and gouging. Select the cartridge for the job.
Cutting Capacity
- Recommended cut 20mm at 500mm/min or 25mm at 250mm/min.
- Handheld severance 32mm at 125mm/min.
- Pierce capacity 16mm for handheld use or with automatic torch height control.
Use the recommended cutting figures when sizing the machine for regular work. Material, consumable and setup affect cutting speed and edge quality.
Technical Specifications
- Output current 20–65A.
- Rated input 380–400V three-phase, 50/60Hz, CE/CCC.
- Duty cycle at 40°C 50% at 65A and 100% at 46A.
- Recommended cutting air supply 210L/min at 5.9 bar of clean, dry, oil-free compressed air.
- Dimensions (D × W × H) 483 × 233 × 430mm.
- Weight including the listed torch 24.1kg.
Ordering code 083356. This is the standard handheld package. For a plasma table or CNC integration, ask for the appropriate machine-torch and interface configuration.
Additional Information
| Brand | Hypertherm |
|---|---|
| Country Of Origin | USA |
| Range | Powermax Sync |
| Voltage | 415v 3ph |
| Warranty | 3 Years |
